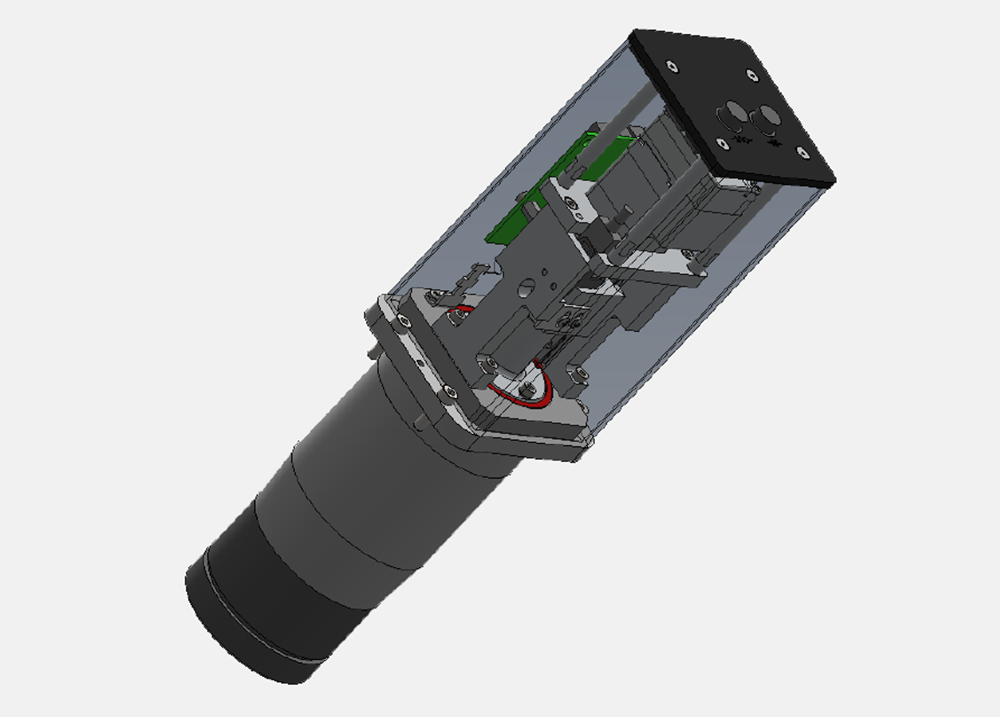

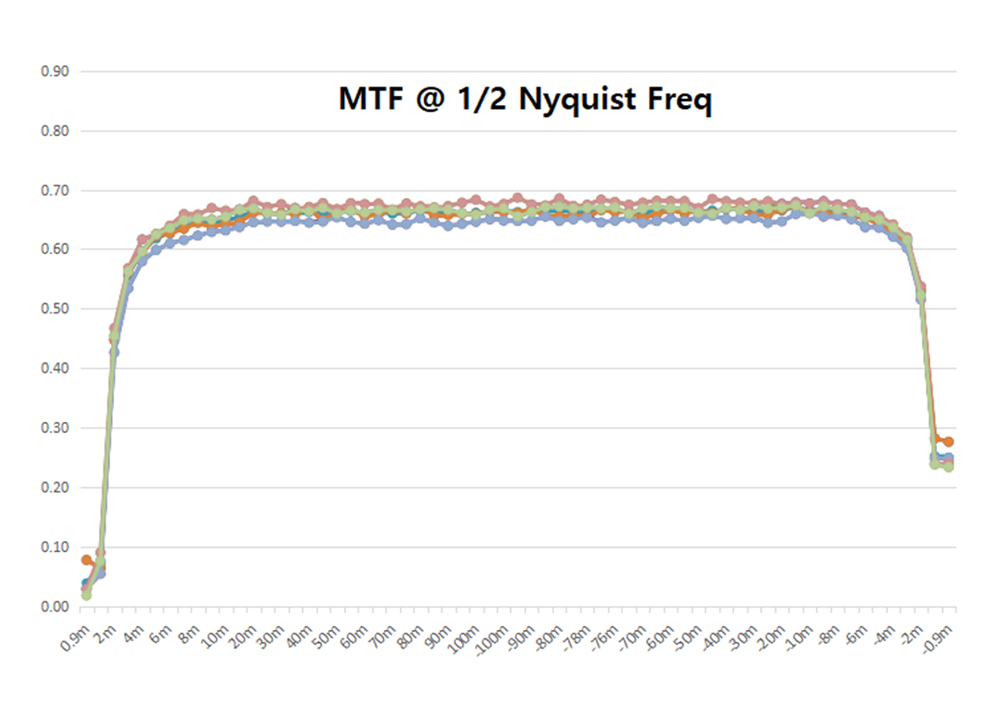

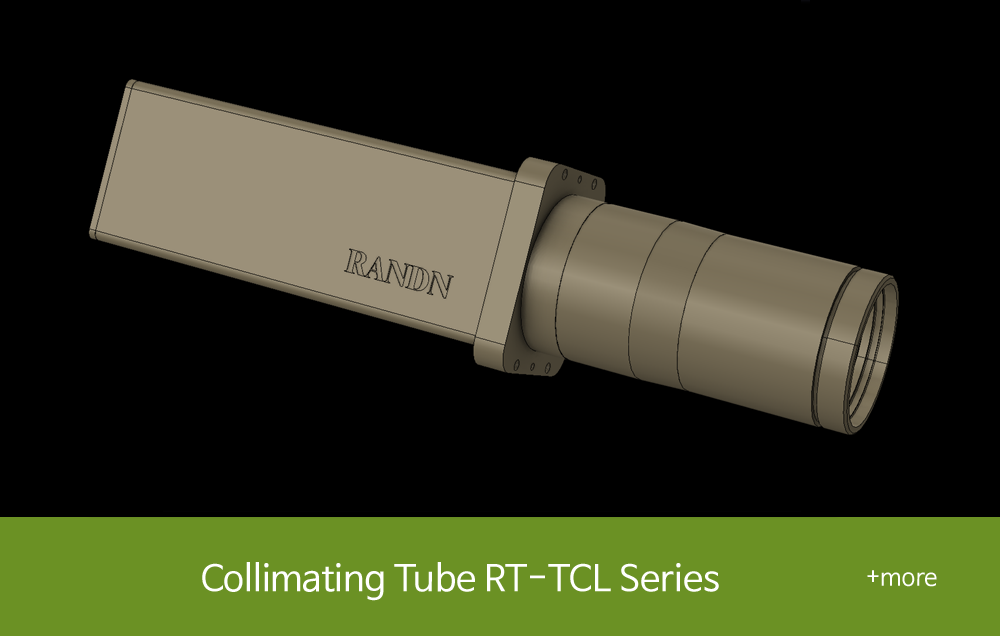

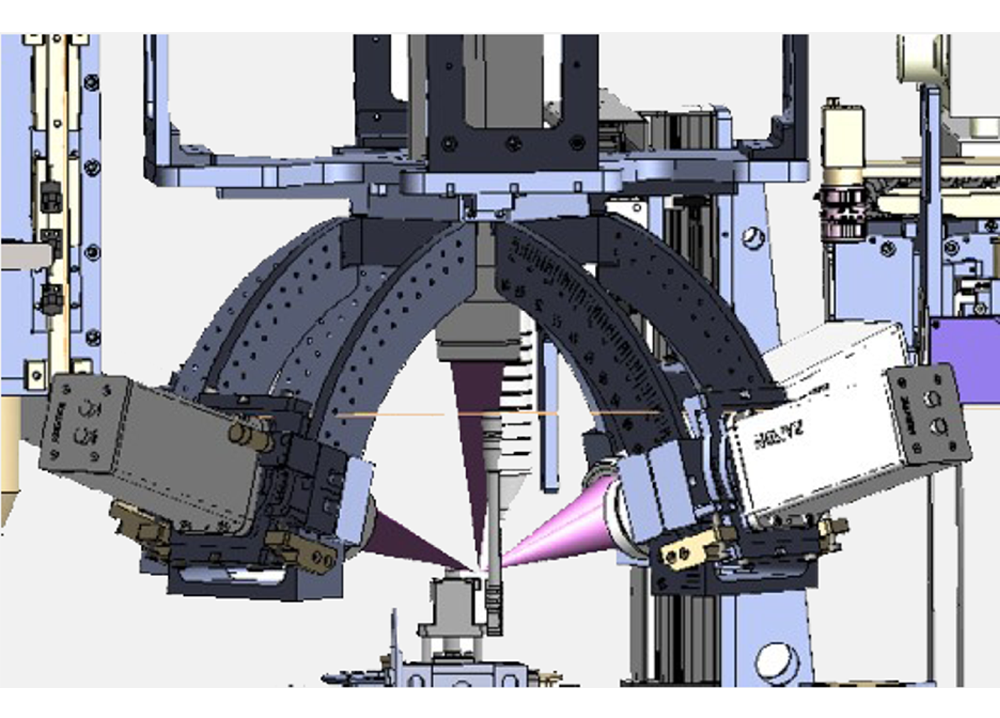

Virtual Distance Simulate test MTF at different distances FOV 15° : 0.5 ~200M (infinity) FOV 12° : Foward Distance:0.9M ~500M (infinity) Hyperfocal Distance:500M (infinity) ~ -0.9M Full-Automation Control & Compact Size Chart Motor & Controller Inside Light Controller Inside Multi RT-TCL Concept Various Combinations are possible SpecificationDownload Model name RT-TCL-L15 RT-TCL-A12 Field of View FOV 15˚ FOV 12˚ Automation Include Chart Motor and Controller Include Light and Controller Vitual Distance 0.5M ~ 200M (Infinity) Foward Distance: 0.9M ~ 500M (Infinity)Hyperfocal Distance: 500M (Infinity) ~ -0.9M Chart Slanted Edge, Double Slanted Edge, Circle, BMW (Option) Color Temperature 6500K (±300) / 5100K (±200) Illuminance Illuminance 100 ~ 3000lux (±10%) Actual Distance Correiation Up to 97% Dimension 335.3 x 85 x 78 (mm) about 2.2 Kg 361 x 85 x 78 (mm) about 2.2 Kg

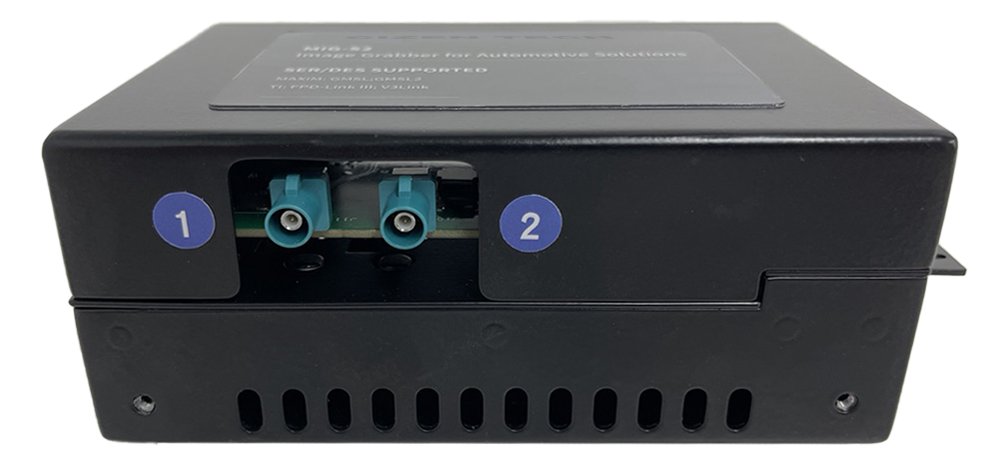

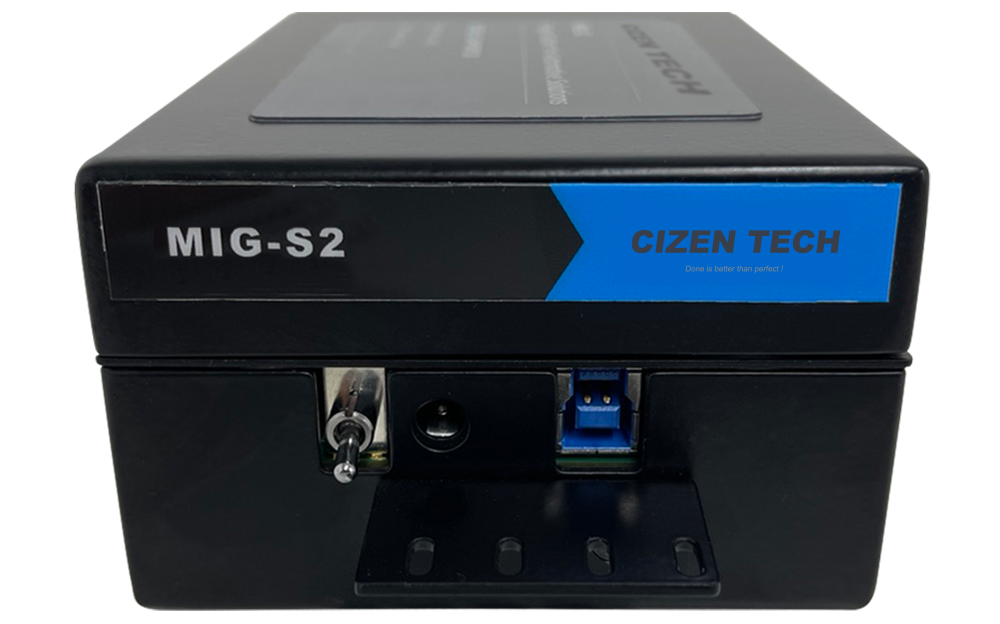

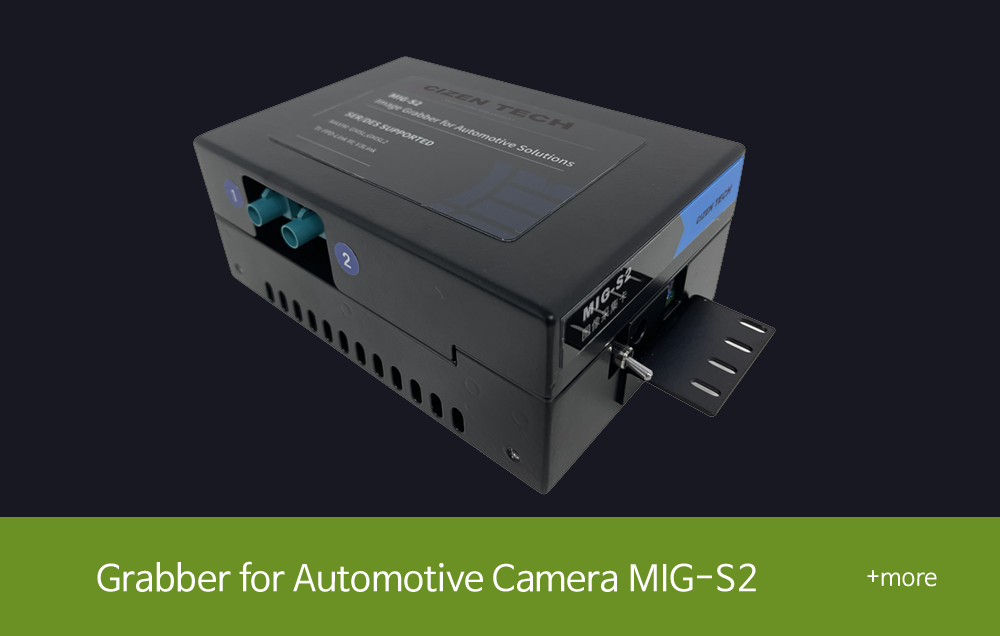

FEATURES FPGA based MIPI interface FX3 USB 3.0 controller Supports GMSL, FPD-Link and other SerDes interfaces in the form of a daughter board (MAX9296A deserializer board included. FPD-Link III selectable) APPLICATIONS Research and pre-development in the algorithm development using State-of-the-art automotive cameras like AI and self-driving. Camera Image Quality Testing Camera Focus Adjustment on Production Sites SPECIFICATIONS Download MIPI Interface : CSI-2 D-PHY, 4-lane up to 2.5Gbps per lane, Realtime ECC & CRC Supported Video Format : 8bit to 16bit raw, YUV DPS : 2CH, 1~20V forcing voltage, 0~2A current measurement Open/Short test : Positive and negative current forcing test Supported Ser/Des : GMSL1, GMSL2, FPD-Link III and V3Link Input Interface : 2x FAKRA Connection Output Interface : USB 3.0 Type-B Connector Power In : 12V/5A DC adaptor
Grabber Interface I2C camera control and link configuration Sensor power sequencing Color Processing Various de-mosaicing algorithm Color correction, AWB Image Processing and Analysis Blob analyzer Pattern recognition Various image processing and defect detection algorithm Analyzing MTF SFR - IS0 12233:2022+ compliance A Tukey window 5-Order polynomial fitting Noise reduction Development Environment C/C++, C#, Python API Windows 10 or Windows 11 Linux Ubuntu 20.04 LTS or Ubuntu 22.04 LTS
